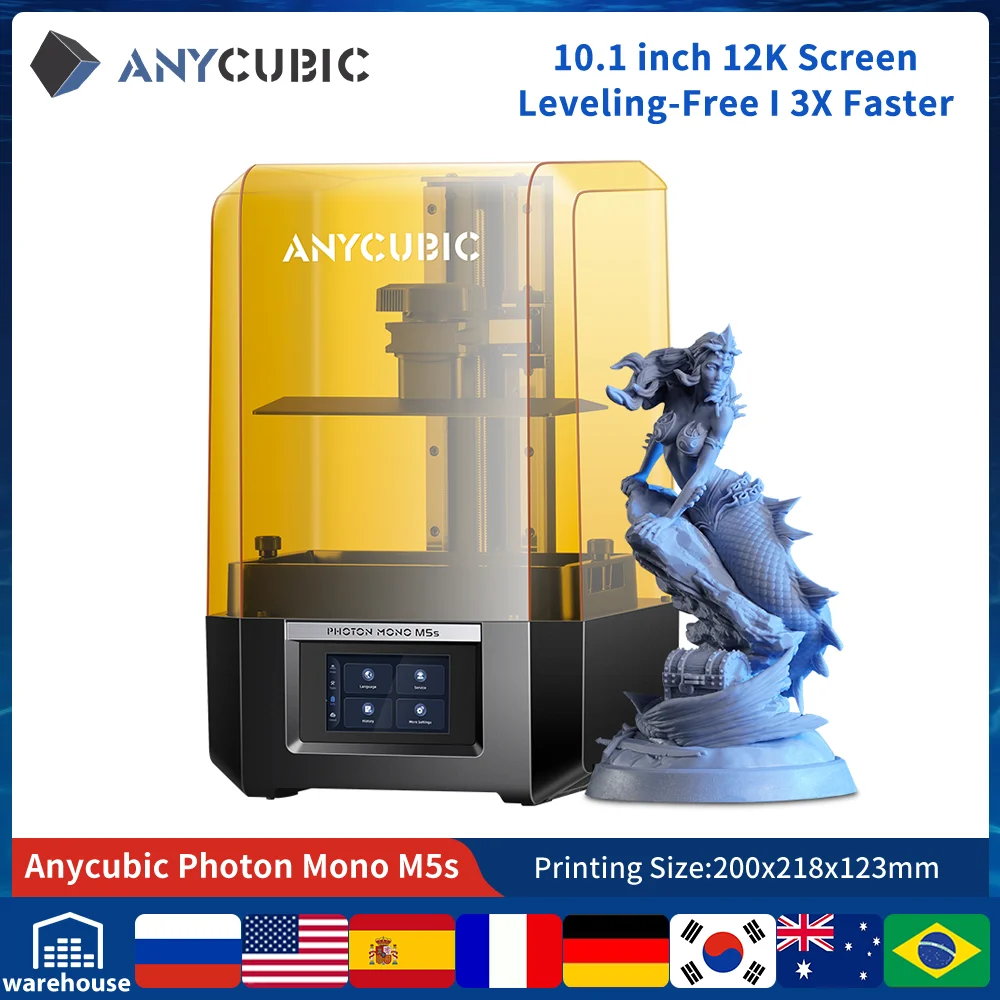

Anycubic Photon Mono M5s
Main Features

12K Exquisite Details

The Photon Mono M5s is the 12K resolution of its 10.1-inch screen, achieving a 19-micron X accuracy, with printing details as precise as a hair thickness.

Leveling-Free
A leap for printing success

A mechanical sensor on the cantilever arm detects the fit between the printing platform and the floating leveling module and automatically adjusts it based on the detection results. This eliminates the risk of leveling failure, improves printing success rate.

3X[1] Faster

Photon Mono M5s is able to reach a 105mm/h* average printing speed. It uses a high-speed release film able to lower the release force, which ensures a high printing success rate while reducing the release height and increasing the lifting speed.

[1] Printed with Anycubic Photon Workshop 3.1 (or higher) and Anycubic High Speed Resin.
Setting at 0.1 mm layer thickness and 2 mm shell perforation and extraction.
Data from Anycubic Lab, for reference only.

Smart, Simple and Efficient

Auto Device Check

Through multiple tests on the connectivity of the exposure screen, mechanical detection module, and motor operation status, it quickly detects and troubleshoots hardware problems, ensuring smooth and non-destructive connections to help achieve printing success.

Resin Detection

In order to reduce printing failures caused by insufficient resin, the resin detection mode is preset to intelligently detect whether the amount of resin in the vat meets the printing requirements before printing. Minimizes print failures due to resin shortages.

Prints Status Detection

The prints status detection function will provide reminders for common failures like bottoming-out printing, significantly reducing waste of resin and time. It also can smartly analyze the causes of failures, and provides effective suggestions to ensure printing efficiency.

Anycubic App

Popular sliced models/STLs available for you to experience 3D printing in just one touch. Task viewing ensures your printing process in control.

Upgraded Anycubic Photon Workshop 3.1

Intelligent Mode

In the new version of slicing software Anycubic Photon Workshop 3.1, the"Intelligent Mode" option can intelligently match exposure parameters according to model details and size, reduce the risk of printing failure caused by improper parameter settings.

New Support Algorithm

The new support algorithm further improves the printing stability and success rate, reduces damage to the model surface, makes it easy to remove supports and bottom valves. Comprehensively improve the speed of punching and slicing, making slicing easier to use.

Anycubic Photon Mono M5s
Models Display

Anycubic Photon Mono M5s
Video Introduction



Anycubic Photon Mono M5s
Tech Specs

Machine Weight

19.6lb./8.9kg

Machine Dimensions

18.11x10.63x11.41in./
460*270*290mm(HWD)

Printing Volume

190oz./5.4L

Printing Dimensions

7.87x8.58x4.84in./
200x218x123mm(HWD)

Average Printing Speed

With high speed resin - 105mm/hr. or 4.13 in./hr.
With general resin - 70mm/hr. or 2.76 in./hr.

Machine Leveling

Leveling-free

Light Source

LED matrix UV light source

Z Axis

Double liners with 10 μm

Resin Vat

Unibody design with scale lines

Exposure Screen

10.1" monochrome
12K(11,520 x 5,120px) resolution
480:1 contrast ratio
4.7 % light transmittance
2,000 hours typical lifespan

Build Platform

Laser engraving aluminum alloy

Control Panel

4.3" TFT touch-control

Removable Cover

Effectively blocks UV radiation

Oversized Protection Film

Replaceable anti-scratch film

Power Supply

100W rated power

Data Input

USB Type-A 2.0, WIFI

Anycubic Photon Mono M5s
In The Box

Anycubic Photon Mono M5s
Comparison

Features

Anycubic Photon Mono M5s

Anycubic Photon Mono M5

12K 10.1" Monochrome LCD Screen

√

√

Leveling-Free

√

×

3X Faster Printing Speed

√

×

Auto Device Check

√

×

Resin Detection

√

×

Prints Status Detection

√

×

Anycubic APP

√

√

Anycubic Workshop 3.1

√

√

Anycubic Care+

Download

Product-related firmware, drivers, slicers, manuals and test models.

Tutorial Videos

Product-related video guides.

Support

Product Wiki & Request after-sales technical support.

The Anycubic Photon Mono M5s boasts a remarkable 12K ultra-high precision and is the first consumer grade self-leveling LCD new product. When paired with high-speed resin, it enables three times faster printing speed. It is intelligent, user-friendly, and highly efficient. Please refer to this module for the usage-related information on the M5s machine.

Official product page:Anycubic Photon Mono M5s

User Manuals

Product Details



Printer Manual

• Manual
• Assembly
• WiFi Connection Tutorial (Method 1: App Configuration)
• WiFi Connection Guide(Method 2: USB Drive Configuration)
• Scan CN code on printer screen



Setting up

Resin type Print parameter		UV Sensitive Resin	Plant-based Resin	Plant based Resin+	UV Tough Resin	DLP Craftsman Resin	Water-Wash Resin	ABS-Like Resin +
Layers Thickness（mm）		0.05	0.05	0.05	0.05	0.05	0.05	0.05
Normal Exposure Time（s)		2.8	2.8	2.8	3	3	2.8	2.8
Off Time（s）		0.5	0.5	0.5	0.5	0.5	0.5	0.5
Bottom Exposure Time（s）		25	25	25	25	25	25	25
Bottom Layers（s）		5	5	5	5	5	5	5
Z Lift Distance（mm）		8	8	8	8	8	8	8
Z Lift Speed（mm/s）		6	6	6	6	6	6	6
Z Retract Speed（mm/s）		6	6	6	6	6	6	6

For 3X High-Speed Printing, please refer to this article，Guide to Using 3x High-Speed Printing.



Maintenance

• Maintenance Suggestions
• Residue Cleaning Operation Video
• Build plate Replacement Guide
• FEP Film Repalcement Guide
• Lead Screw Motor Replacement Guide
• Resin Vat Film Replacement Guide
• LCD Screen Replacement Guide
• Touch Screen Replacement Guide
• UV Lamp Replacement Guide
• Motherboard Replacement Guide



Troubleshooting

• General Knowledge
• Printer Fails To Start
• Screen Connection Status Error
• Force Detection Fault (Sensor fault)
• Motor Status Error
• WiFi Connection Failure Troubleshooting
• USB Not Reading
• Layered Monitoring Error
• Drop Bottom Monitoring Error
• Leveling Monitoring Error
• Resin Monitoring Error
• Compilation Of Printer Error Pop-up Windows And Tutorial Instructions
• Models Not Sticking to the Printing Plate During Printing



Download Center

Firmware

• v1.02.1
• Firmware Upgrading



Manual

• Anycubic Photon Mono M5s_User Manual_v0.0.6_EN
• Anycubic Photon Mono M5s_User Manual_v0.0.6_DE
• Anycubic Photon Mono M5s_User Manual_v0.0.6_ES
• Anycubic Photon Mono M5s_User Manual_v0.0.6_FR
• Anycubic Photon Mono M5s_User Manual_v0.0.6_IT
• Anycubic Photon Mono M5s_User Manual_v0.0.6_JP
• Anycubic Photon Mono M5s_User Manual_v0.0.6_RU
• Anycubic Photon Mono M5s_User Manual_v0.0.6_ZH
• Anycubic Photon Workshop V3.1.4



Photon Workshop V3.14

Software

• Windows
• MacOS

User Manual

• User_Manual_v0.1.9_EN
• User_Manual_v0.1.9_DE
• User_Manual_v0.1.9_ES
• User_Manual_v0.1.9_FR
• User_Manual_v0.1.9_IT
• User_Manual_v0.1.9_JP
• User_Manual_v0.1.9_RU
• User_Manual_v0.1.9_ZH



Test Files

• R_E_R_F.pm5s
• TEST Default Resin_Fast.pm5s
• TEST Default Resin_Normal.pm5s
• TEST High Speed Resin.pm5s
• TEST_MAX Default Resin_Fast.pm5s
• TEST_MAX High Speed Resin.pm5s



Photonen mono m5s

Drucken wie ein Meister

10.1 "12k Bildschirm | nivellierung sfrei | 3x schneller

Unterstützung App-Steuerung

Belichtung bildschirm: 10.1 ''monochrom

Druck genauigkeit: 12k 11520*5120

Kontrast verhältnis: 480:1

Licht durchlässigkeit: 4.7%

Lichtquelle: Parallel matrix (LED x 28)

Horizontale Auflösung: 19μm

Druck abmessungen: 8,58x7,87x4,84 Zoll.

Druck geschwindigkeit: 1,96 in./hr.

Maschinen nivellierung: Handbuch (4-Punkt)

Strom versorgung: 100w



Photonen mono m5s

Drucken wie ein Meister

10.1 "12k Bildschirm | nivellierung sfrei | 3x schneller

Unterstützung App-Steuerung

Maschinen nivellierung: nivellierung sfrei

Belichtung bildschirm: 10.1 ''monochrom

Druck genauigkeit: 12k 11520*5120

Kontrast verhältnis: 480: 1

Licht durchlässigkeit: 4.7%

Lichtquelle: Parallel matrix (LED x 28)

Horizontale Auflösung: 19μm

Druck abmessungen: 8,58x7,87x4,84 Zoll.

Druck geschwindigkeit: mit Hoch geschwindigkeit sharz: 4,13 Zoll/Std., mit allgemeinem Harz: 2,76 Zoll/Std."

Strom versorgung: 100w



Waschen & Aushärten max

Eine für alle

14,9 l | Sprüh reinigung | alkohol effizient

Maschinen gewicht: 13,5 kg / 29 lbs

Maschinen größe: 434*434*556mm/17.1*17.1*21,9 Zoll (lwh)

Wasch volumen: 300*165*300mm





Spezifikationen

• Sprache

  English

  Scheibe Software

  ANYCUBIC Photon workshop

• Fliament

  405nm UV Resin

  Molding Technologie

  LCD

• Spannung

  110-220 V

  Schnittstellentyp

  USB

• Ce-zertifizierung

  Ja

  Markenname

  ANYCUBIC

• Ursprung

  CN (Herkunft)

  Warranty

  12 months warranty

• Photon operational system

  hassle-free USB mode printing
