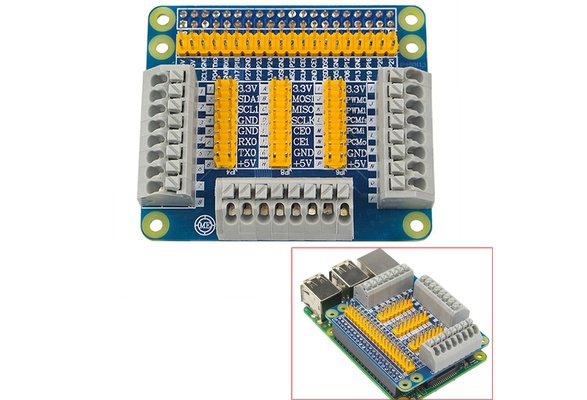

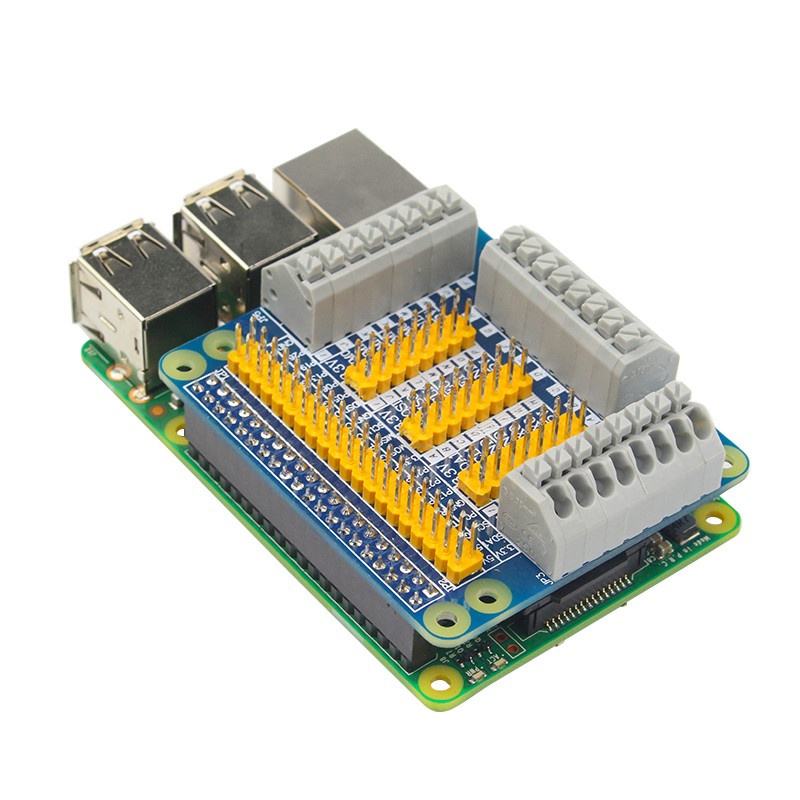

It is designed to be customized GPIO multifunction expansion board for the Raspberry Pi. It is easy for the users to connect enrich peripheral modules to Raspberry Pi board such as 4-Digit Display module, Serial Bluetooth module, Serial MP3 module.etc.
Features:
- Compatibility: compatible with Raspberry Pi 2 model B and Raspberry Pi 3 model B
- Lead out all the pins and the pin pitch is 2.54mm
- Screwless terminals lead out 24 pins, wiring is very convenient.
| General |
| Brand |
OPEN-SMART |
| Model |
N/A |
| Quantity |
1Piece |
| Form Color |
Blue + Black |
| Material |
PCB+Alloy+Plastic |
| Specification |
| English Manual / Spec |
Yes |
| Download Link |
https://drive.google.com/folderview?id=0B6uNNXJ2z4CxbkZ6dEVvRkNncFE&usp=sharing |
| Dimensions & Weight |
| Dimensions |
2.56 in x 2.2 in x 0.98 in (6.5 cm x 5.6 cm x 2.5 cm) |
| Weight |
0.78 oz (22 g) |
