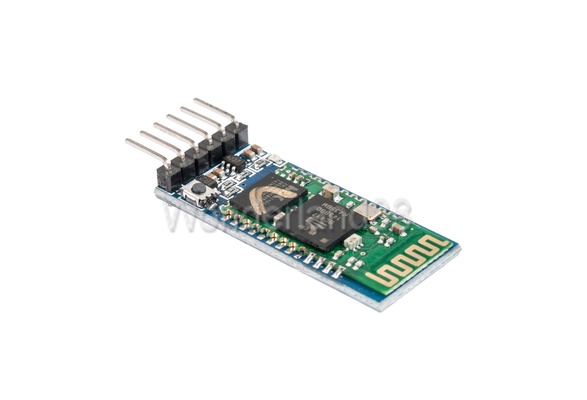

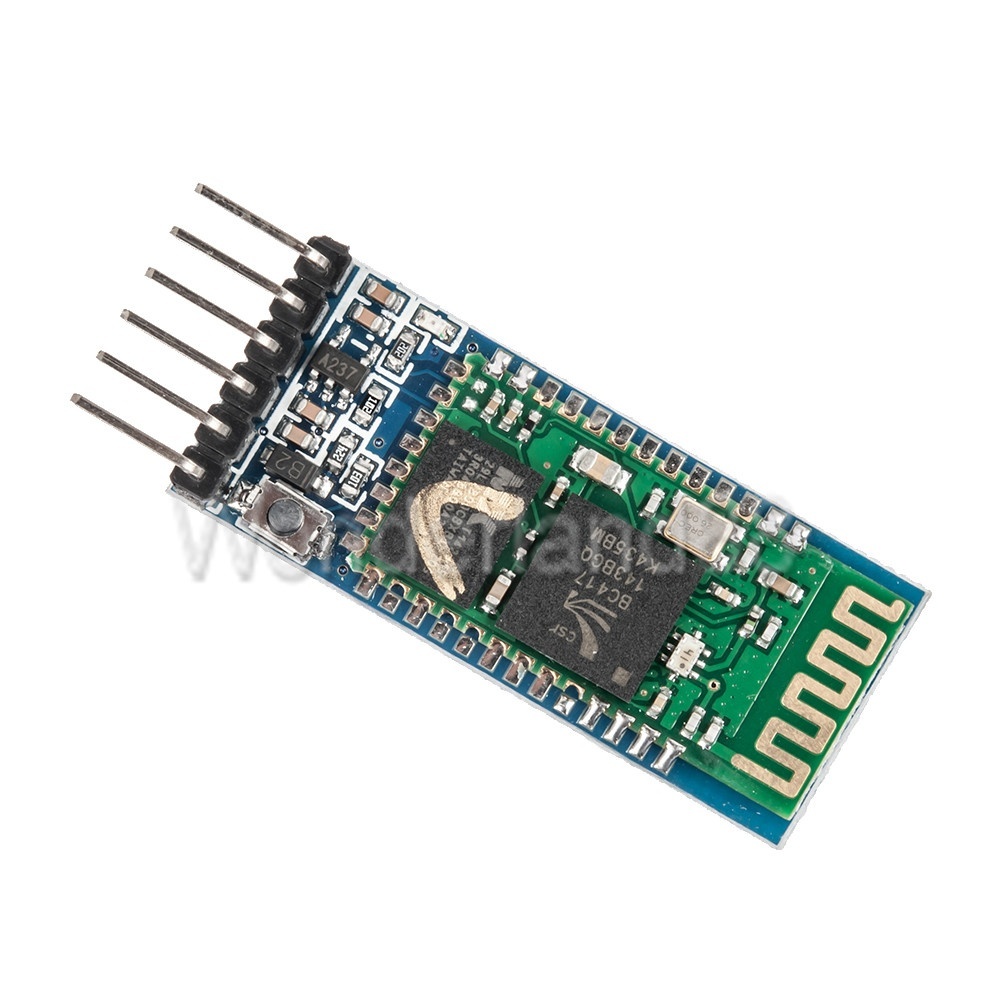

HC-05 bluetooth module
Condition: New
Size: 3.75 * 1.52 cm
Core modules is HC - 05 module
Module port level is 3.3v
Led indicate the bluetooth connection status, fast flash stand for no connection, slow flash stand for AT mode, double flash stand for connect success
Base plate with anti reverse diode, have 3.3v LDO, unpaired current is about 30mA, paired is about 10mA, input voltage could not over 7V
Field effective distance is 10 meters(class 2)
Through the AT command switch the host or slave mode
Support 4800bps-1382bps standard baud rate
Color is shown as pictures
PLS NOTE that due to lighting effects, monitor's brightness/ contrass settings ect, there could be some slight differences in the color tone of the pictures and the actual item!

Package Included:
1 x HC-05 bluetooth module
