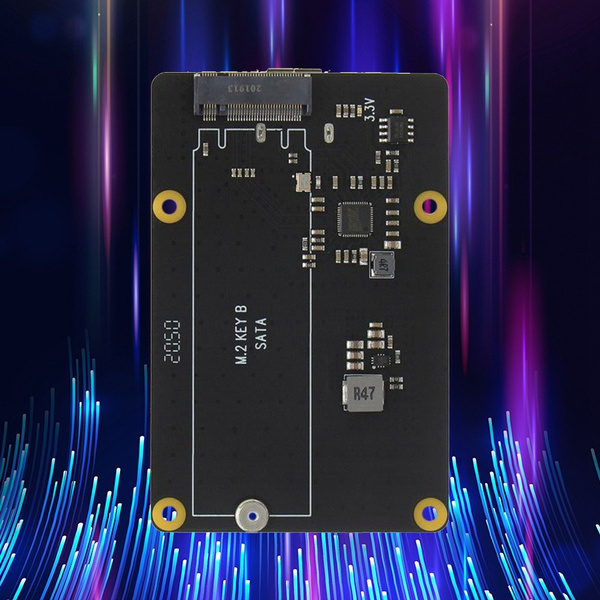

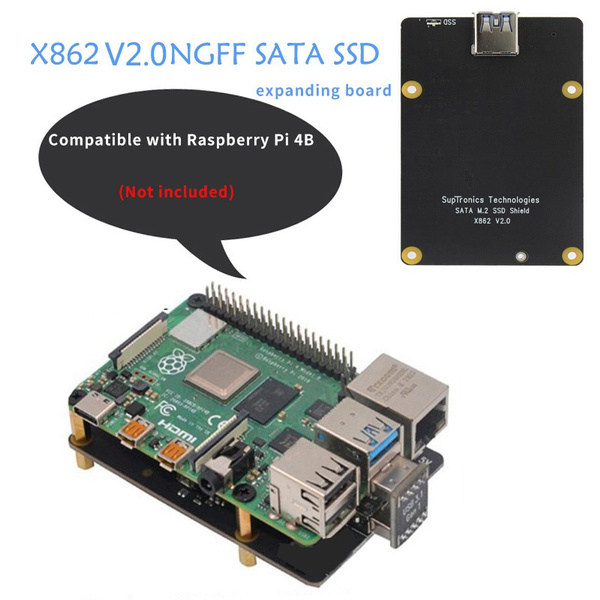

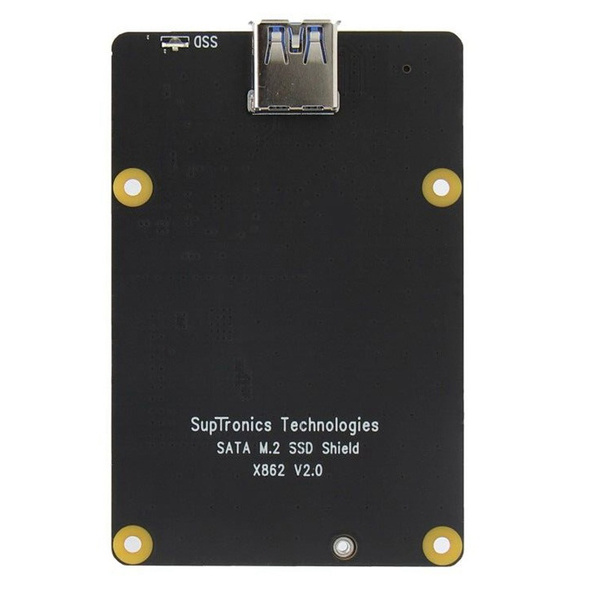

X862 is an extended version of M.2 NGFF SATA SSD for Raspberry Pi 4 B.

It provides a complete storage solution for Raspberry Pi 4.

It supports a variety of M.2 NGFF SSD lengths, including: 2280, 2260, 2242, 2230.

X862 is not suitable for ROCK64 and Raspberry Pi 3B + / 3B because the USB 3.0 location is different.

• Name:X862 Expansion Board
• Compatible with: Raspberry Pi 4 Model B
• Interface: SATA
• size:85x56mm
• Material:metal
• colour:Black

note: Other copper pillars required for SSD lengths of 2260, 2242 and 2230 (not available for X862)

Only compatible with M.2 NGFF SATA SSD, not compatible with NVMe M.2 SSD

Like all SSDs, new media must be formatted before use SSD uses extremely high-performance storage media, which will be very hot when the load is insufficient

Older SSD drives that use less efficient flash media may not perform as well as newer drives

Compatible with X735, provide intelligent power management and cooling function

Compatible with X710 Provides wide input voltage (6-36V) and intelligent power management functions

Compatible with X765 Provide POE and wide voltage power supply function (POE, 5V 5A)

Compatible with X728, provide uninterrupted power supply (18650 , 5.1V 8A, intelligent power management)
