Features:
*Gate Garage Opener Remote Control Switch 5pcs Transmitter+Receiver Set
*It has 2 channel relays which can make the equipment turn or reverse, on/off and so on come true.
*Each wireless remote control has 2 programmable function keys.
*The output way/working way can be changed as you like.
*Widely used in auto door, window, lifting equipment, entrance access, up and down controller, alarm system industrial control and security etc.

Specifications:

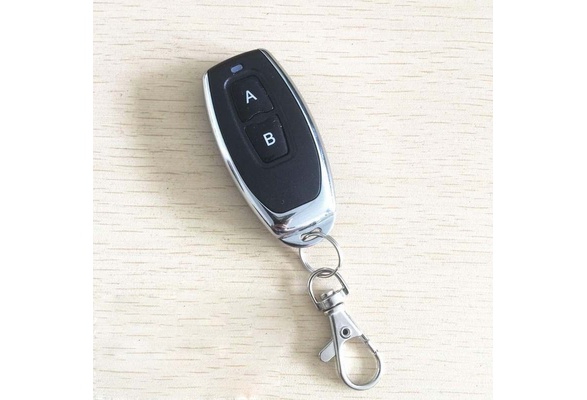

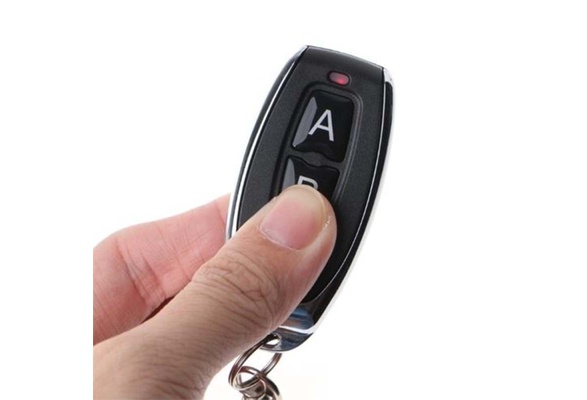

Remote Control:
*Item Condition:100% Brand New
*Material:ABS
*Color:As Pictures Show
*Dimension:5*3*1.3cm/1.97 x1.18 x0.51 (Approx.)
*Remote control power supply:12V/27A battery(Not included)
*Working frequency:433MHZ
*Key:2 Keys
*Transfers distance: 50m-100m (in the open space)

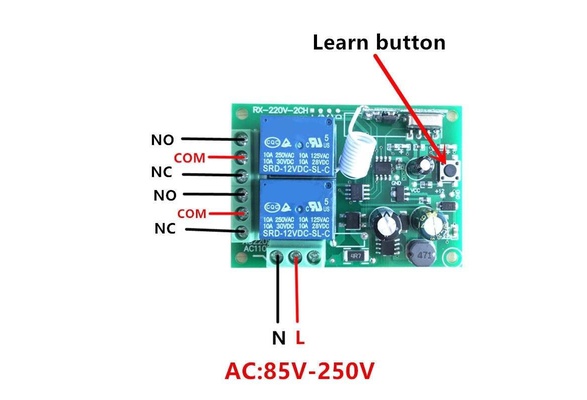

Receiver:
*Working voltage:AC 85V-250V
*Static current: 8.5mA
*Working frequency: 433 MHz
*Receiving sensibility: > 97 dBm
*Modulation mode: ASK
*Encode mode: Learning code(1527)
*Decoding mode: MCU software decoding
*Wiring type: Fixed terminal
*Switch output: Normally open & Normally closed.
*Working temperature: -30 ~ 80

Output working way:
1. Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
2. Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
3. Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.
4. Delay: Press remote control 's one button,relay is working,release the remote control and begin timekeeping,after 5s/10s/15s will automatically close the relay.

Package Contents:

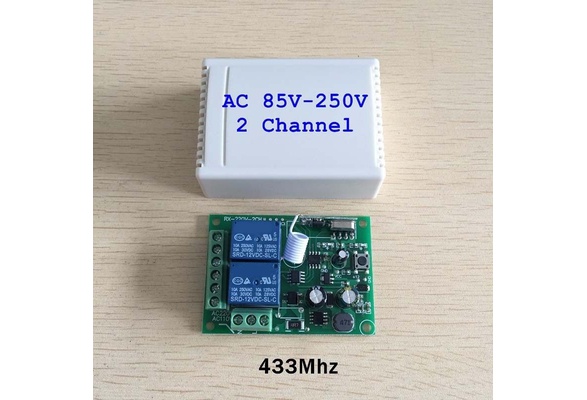

1*Receiver with shell
5*Remote Controllers
Notes: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
