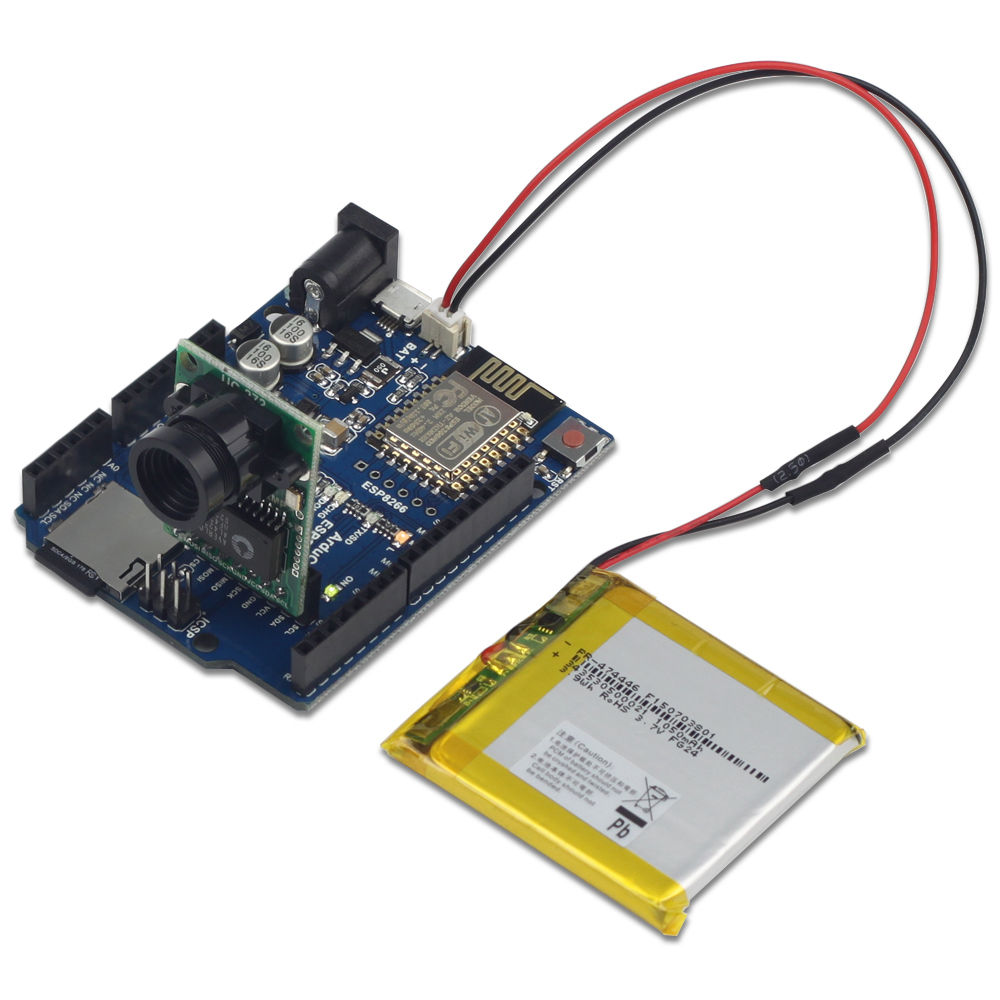

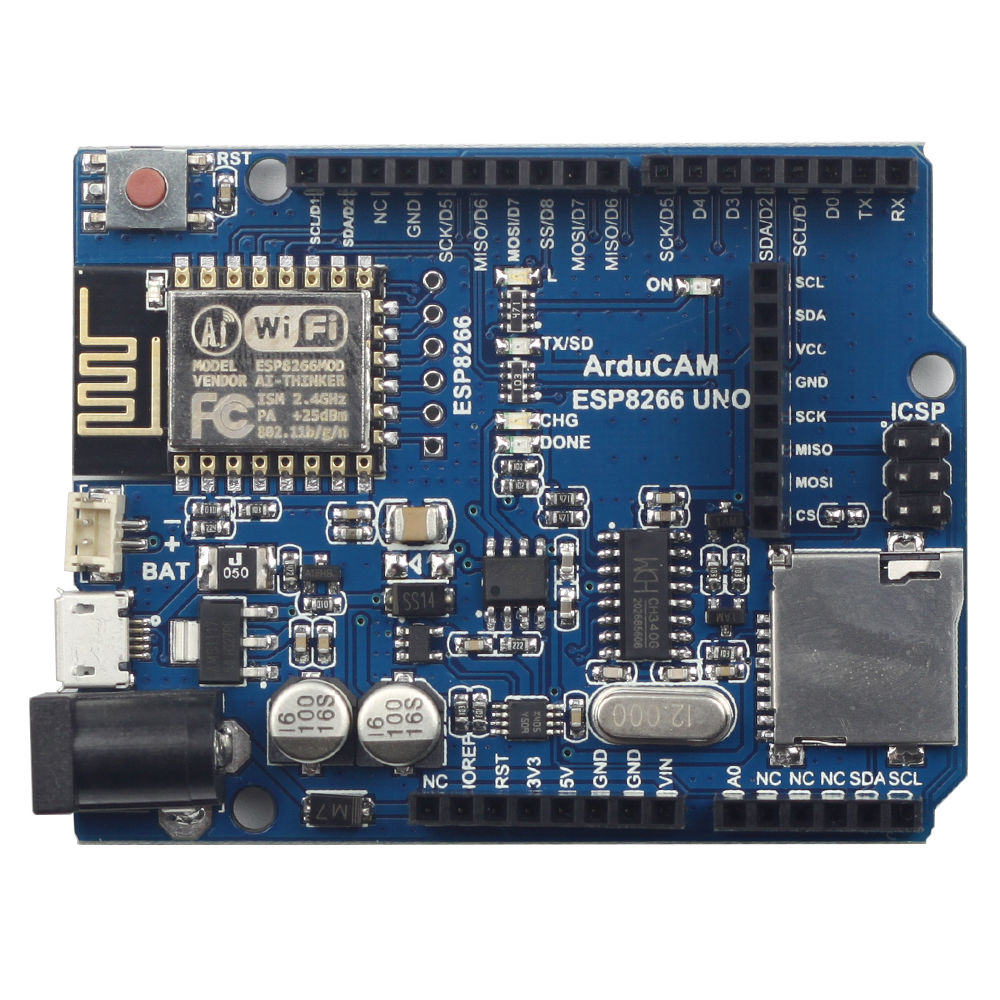

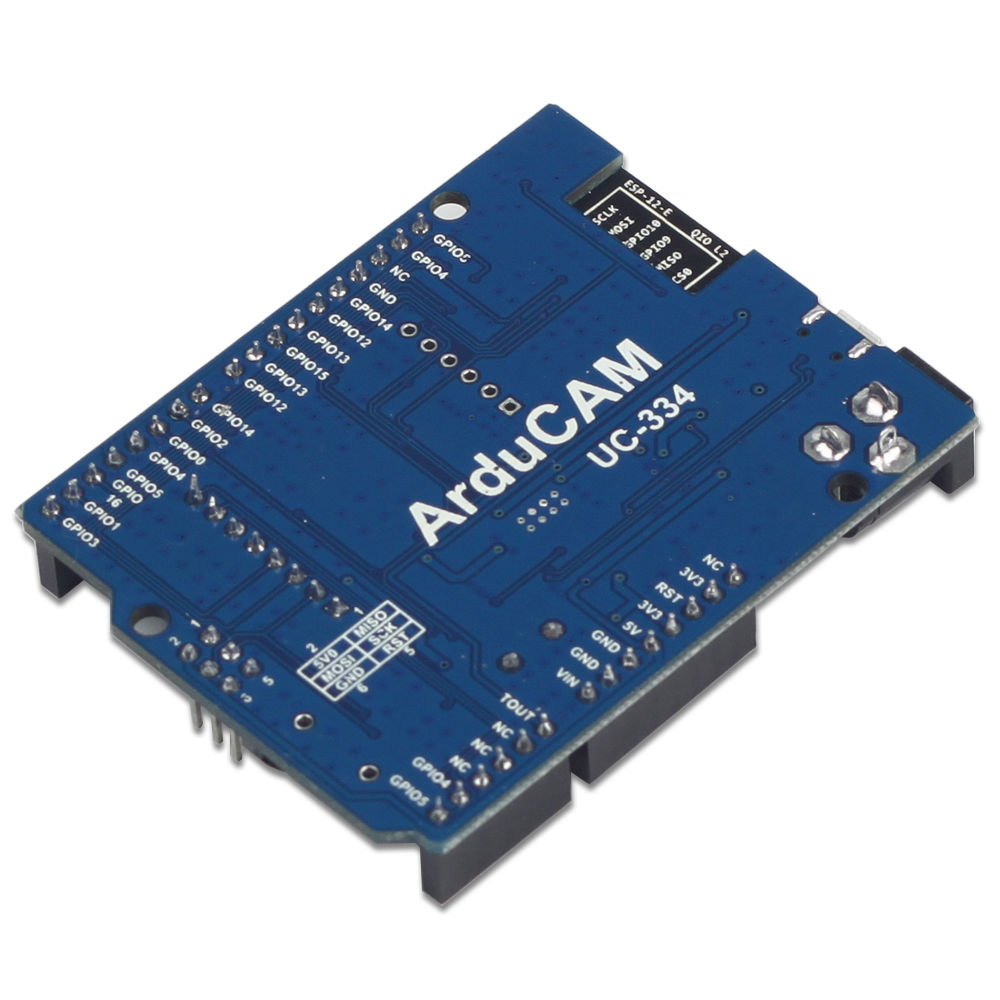

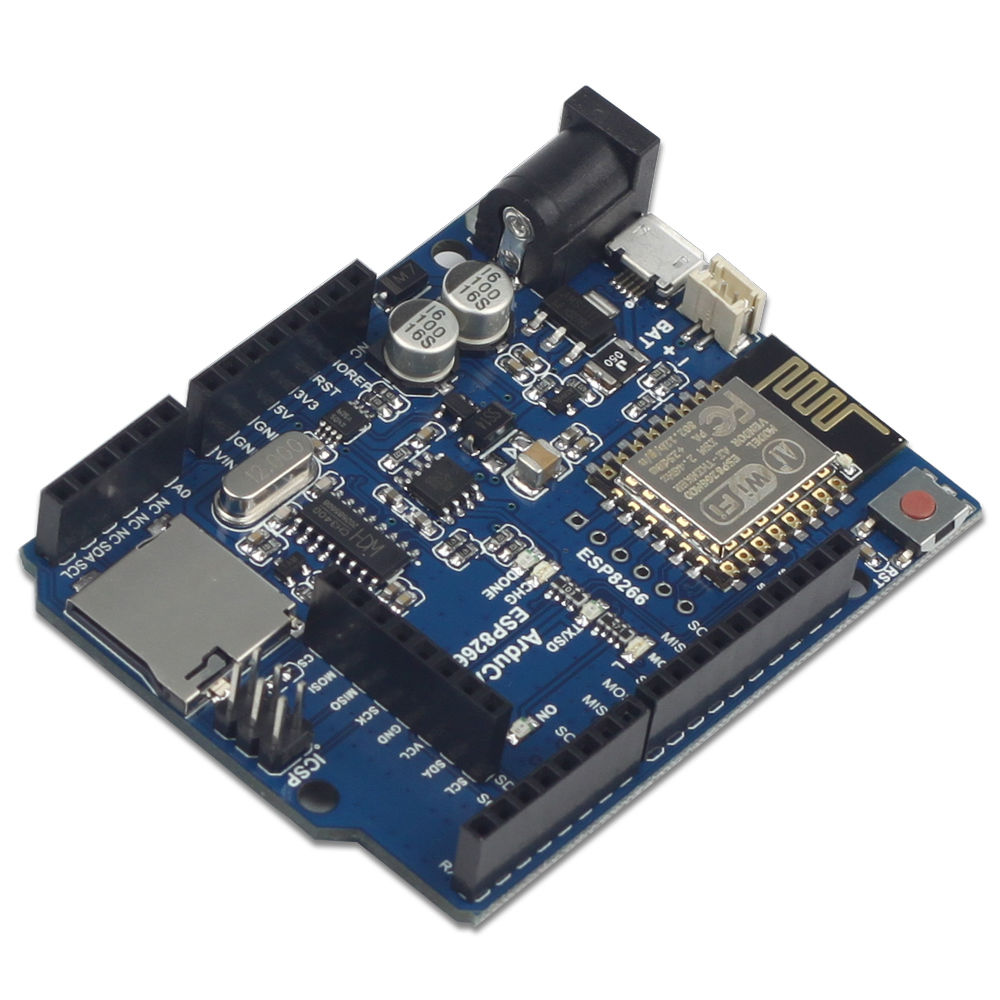

• ArduCAM now released a ESP8266 based Arduino board for ArduCAM mini camera modules while keeping the same form of factors and pinout as the standard Arduino UNO R3 board. The high light this ESP8266 board is that it well mates with ArduCAM mini 2MP and 5MP camera modules, supports Lithium battery power supply and recharging and with build in SD card slot. It can be an ideal solution for home security and IoT camera applications.

Features:

• Build in ESP8266-12E Module
• 11 digital input/output pins, IO ports are 3.3V tolerant
• 1 analog input(3.2V max input)
• ArduCAM Mini 2MP/5MP camera interface
• Lithium battery recharging 3.7V/500mA max
• Building in SD/TF card socket
• 7-12V power jack input
• Build in micro USB-Serial interface
• Compatible with Arduino IDE
