PCF8574P
ID: 220
Kategorie: Microchips
Menge: 0
Position:

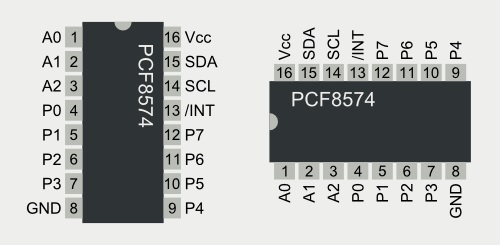

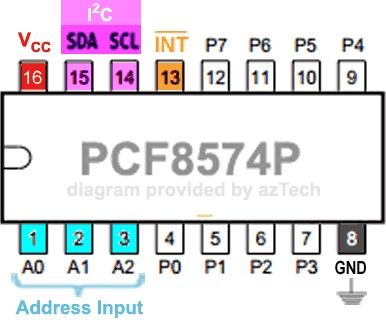

The PCF8574P is a remote 8bit I/O expander for I2C bus with interrupt in 16 pin DIP package. It provides general purpose remote I/O expansion via two wire bidirectional I2C bus (serial clock (SCL), serial data (SDA)). The devices consist of eight quasi bid...

  • I2C bus to parallel port expander
  • 8bit remote I/O pins that default to inputs at power up
  • Total package sink capability of 80mA
  • Active low open drain interrupt output
  • Eight programmable slave addresses using three address pins
  • Low standby current is typically 2.5µA
  • Operating temperature range -40°C to 85°C
  • Features ESD protection

All I/O pins are protected against ESD under normal handling. When handling, ensure that appropriate precautions are taken as described in JESD625-A or equivalent standards.
