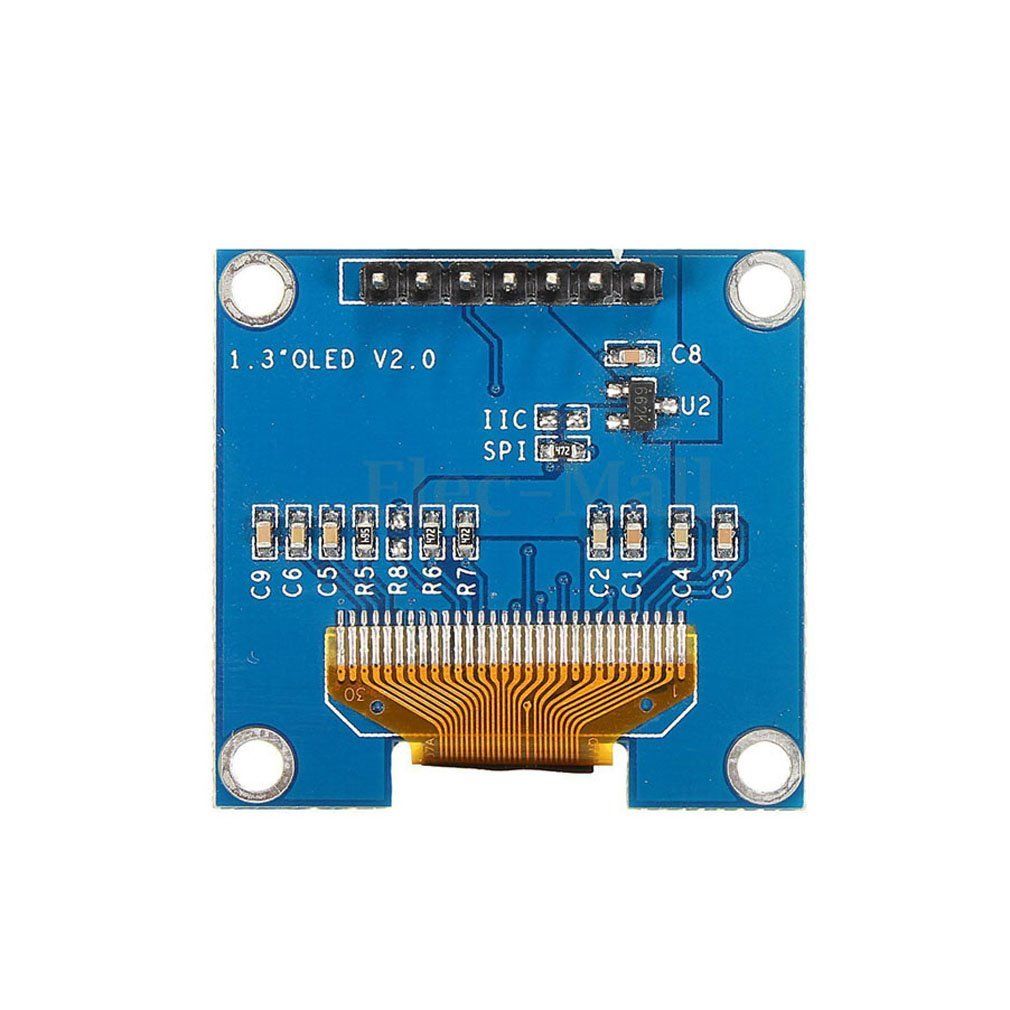

1.3" IIC I2C Serial SPI 128x64 OLED LCD Display LCD Module Arduino AVR PIC STM32



Specifications:
1. Driver IC: SSH1106
2. Resolution: 128*64
3. Viewing angle: >160
4. OLED screens inside the driver chips: SSH1106
5. Supports many control chip : fully compatible with Arduino 51 series,msp430 series , stm32/2 CSR IC , ETC
6. Ultra-low power consumption: full screen lit 0.08w
7. Voltage: DC 3V-5V
8. Work temp : -30c-70c
9. Interface: IIC/SPI
10. Font Color: White
11. PIN Interface: IIC or SPI optional



IIC Pin definition:
GND: Power Ground.
VCC: Power + (DC 3.3 ~5v).
SCL: Clock Line.
SDA: Data Line.



SPI Pin definition:
GND: Power ground
VCC: Power
CLK: Clock line
MOSI: Data cable
RES: Reset line
DC: Data/commands
CS: Chip select (when not use can be grounded directly)
