Product Description:

Features:

100% brand new and high quality.

For automatic control systems:automatic solar water,infrared sensors,sanitary ware,showers, etc.

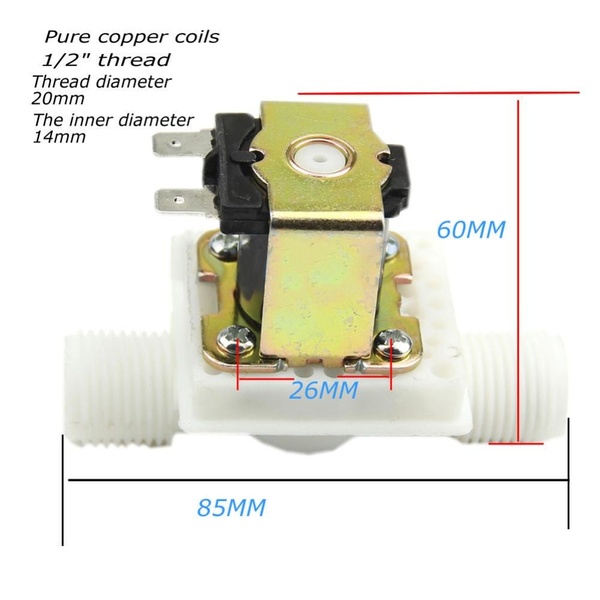

Interface specification: four external thread G1/2 DN15.

The insulation grade is high and the heat dissipation effect is good. The electric solenoid valve is made of high quality plastic and brass material, with long serving life.

Description:

• Material: Metal + Plastic
• Voltage:DC 12V,AC220V
• Power: 8W
• Current: 0.6A
• Inlet and outlet:hose barbs for 1/2" (outer diameter) hose
• Pressure:0.02- 0.8Mpa
• Max fluid temperature:100°C
• Operation mode:normally closed
• Valve type:diaphragm (operated by Servo)
• Usage:water and low viscosity fluids
• Please note it is not suitable for use with gravity fed systems.
