Mega2560 + WiFi R3 ATmega2560+ESP8266 32Mb memory USB-TTL CH340G. Compatible for Arduino Mega NodeMCU For WeMos ESP8266
ID: 101
Kategorie: Incoming
Menge: 1
Position:

WeMOS Mega + WiFi R3 ATmega2560 + ESP8266 USB-TTL For Arduino Mega NodeMCU

Features:

  • Full integration on one board: Mega R3 ATmega2560 and WiFi ESP8266 with memory 32Mb (megabyte)
  • All of the modules can work together or each separately. And everyone has their own pinout headers
  • The convenient solution for the development of new projects requiring Uno and WiFi Via USB you can update sketches and firmvare for ATmega2560 and for ESP8266. For this on board have the USB-serial converter CH340G

Use this board is very simple

The board has DIP-switch, to connect the modules

For example, to: USB and ATmeg2560, USB and ESP8266, ATmega2560 and ESP8266

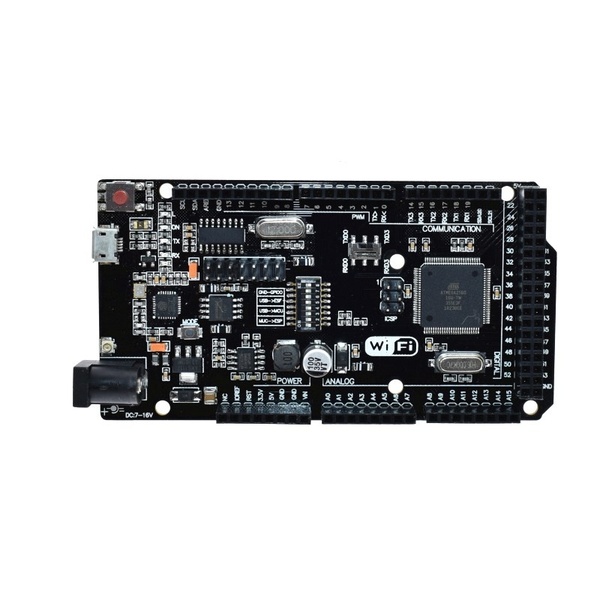

It is a customized version of the classic ARDUINO MEGA R3 board. Full integration of Atmel ATmega2560 microcontroller and ESP8266 Wi-Fi IC, with 32 Mb (megabits) of flash memory, and CH340G USB-TTL converter on a single board! All components can be set up to work together or independently.

Operating mode is selected by means of DIP switches on-board:

Table DIP- Switch:

Connection DIP
  1 2 3 4 5 6 7
ATmega2560<->ESP8266 ON ON OFF OFF OFF OFF OFF
USB <->ATmega2560 OFF OFF ON ON OFF OFF OFF
USB<->ESP8266 (Update firmware or sketch) OFF OFF OFF OFF ON ON ON
USB<->ESP8266 (communication) OFF OFF OFF OFF ON ON OFF
All independent OFF OFF OFF OFF OFF OFF OFF

Also, have switch for change of connecting port between ATmega2560 and ESP8266

Special solution:

USB <->ATmega328<-> ESP8266

Connection DIP SWITH 2
  1 2 3 4 5 6 7
USB <-> ATmega2560<-> ESP8266 ON ON ON ON OFF OFF OFF To RXD3/TXD3

After choosing the mode of the board can proceed to set up the IDE

It is important that when the ESP8266 module is programming, it is necessary to press the button “Mode”

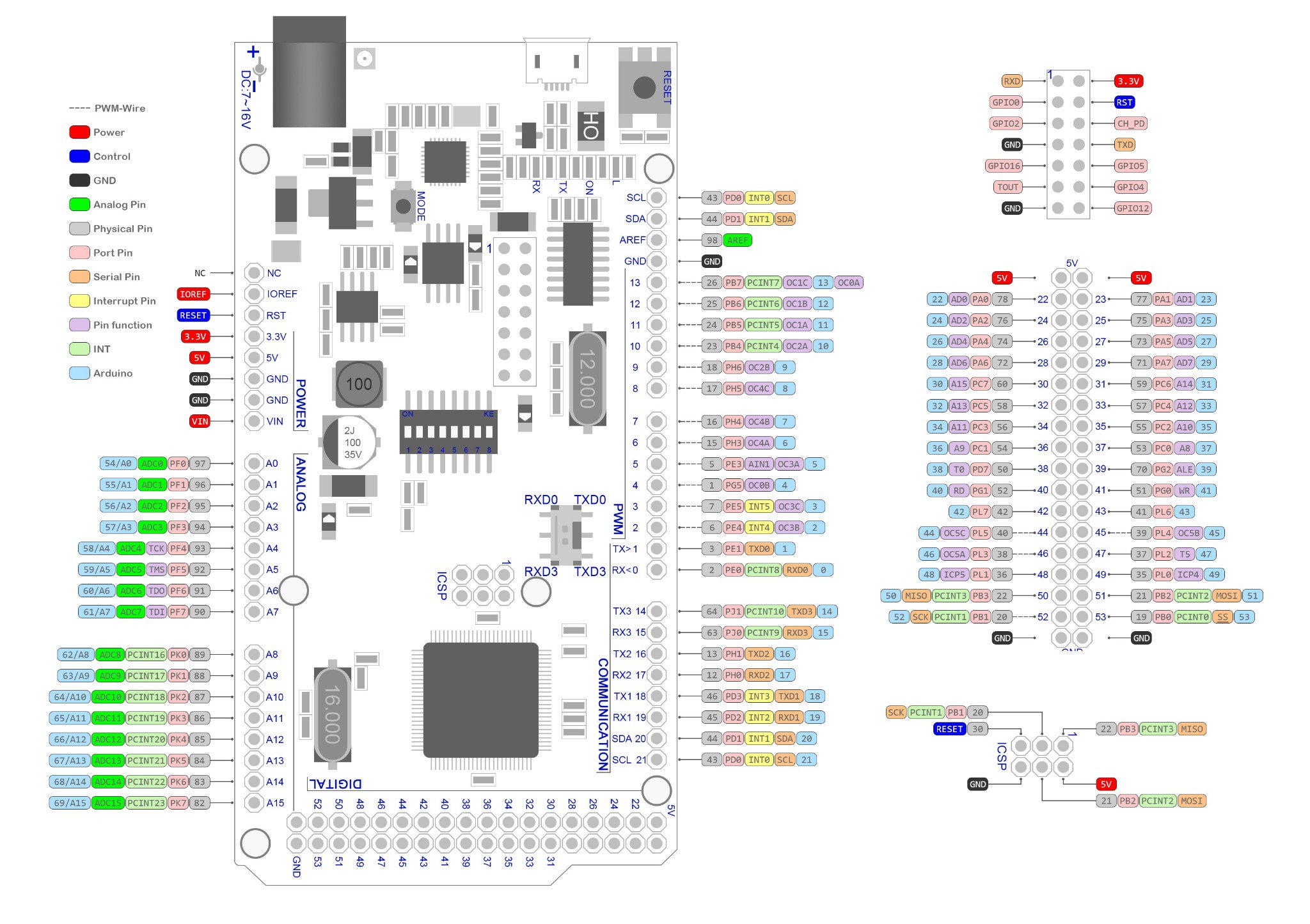

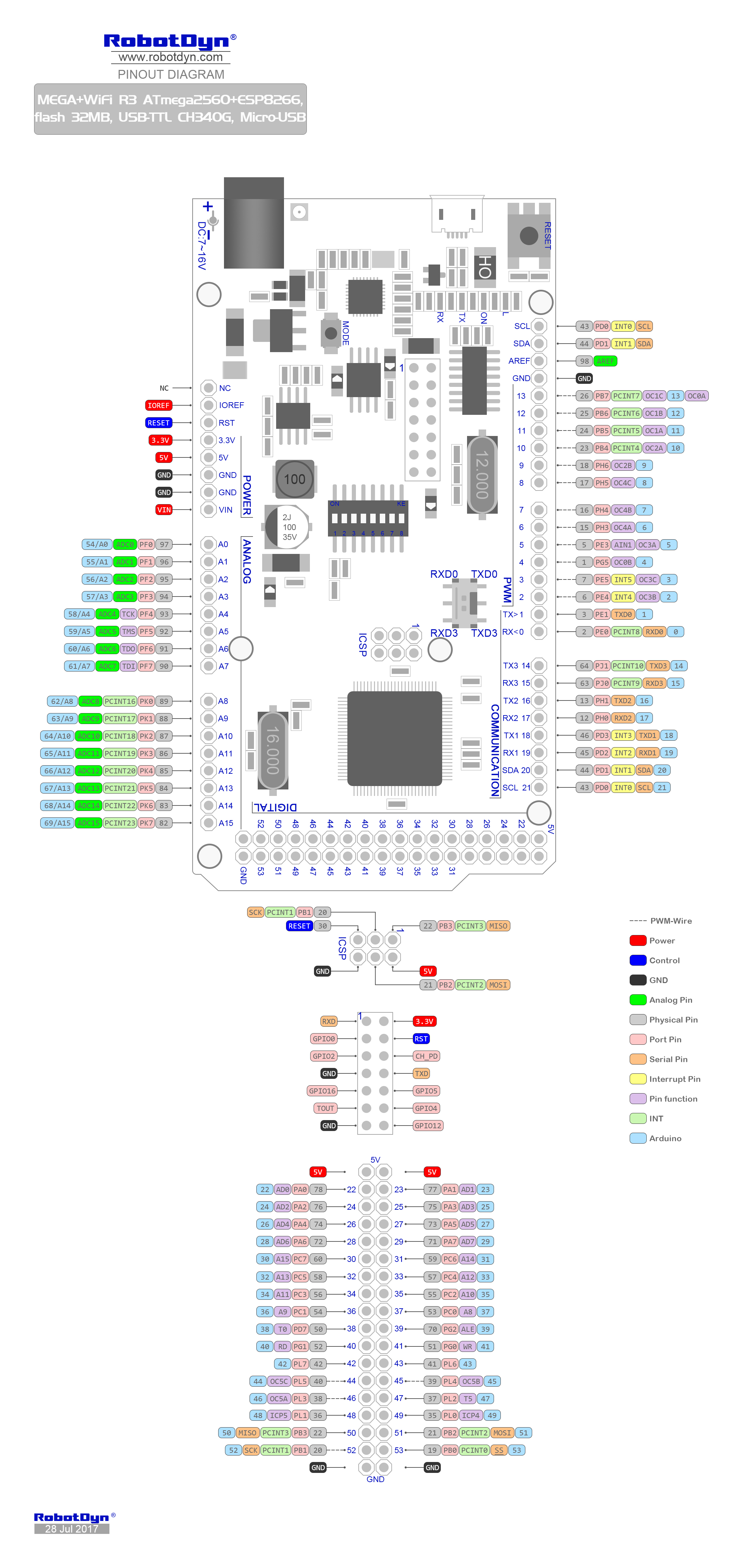

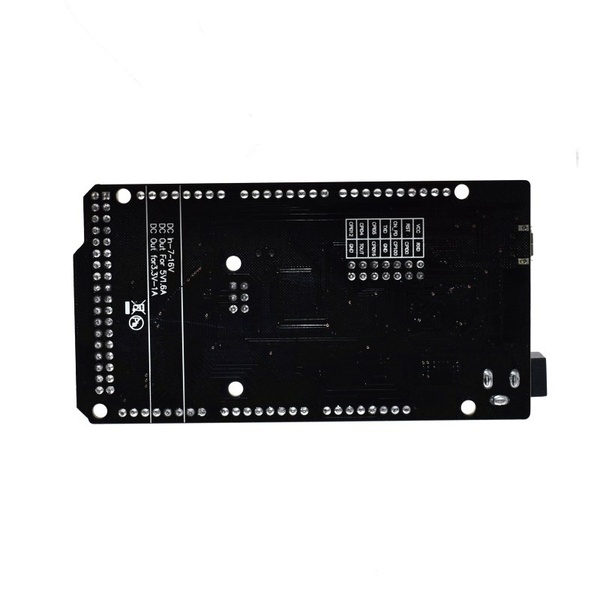

USB converter CH340G connect to RX0/TX0 of ATmega2560

ESP8266 connect to RX3/TX3 of ATmega2560

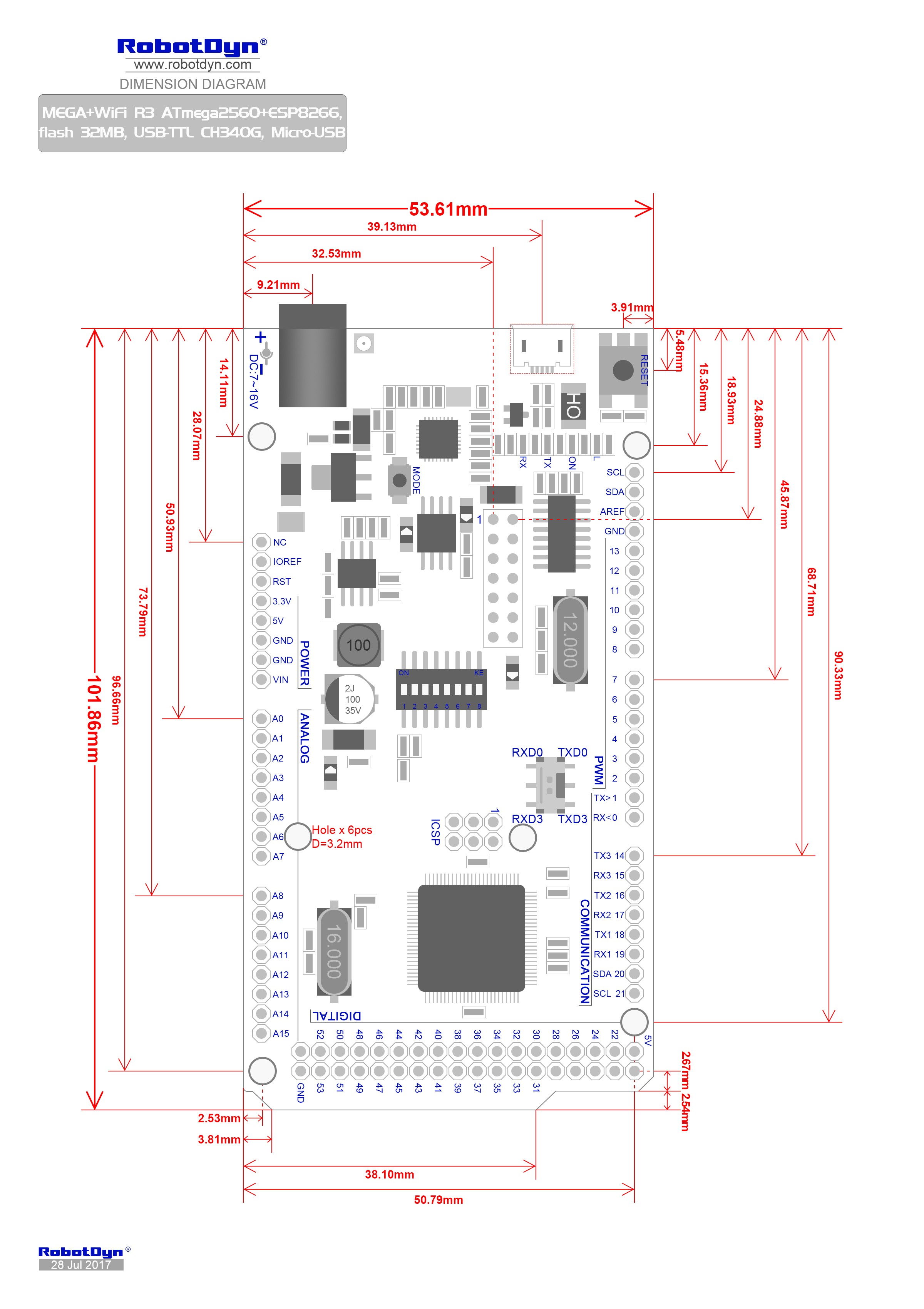

Size: 10.5x5.3cm/4.13x2.09inch

Then in the window that appears in the row, Additional Boards Manager URLs (marked in red) insert http://arduino.esp8266.com/stable/package_esp8266com_index.json link for installation in Arduino IDE additional scripts that would work with the modules ESP8266 and click OK


==========test sketch for ATmega2560===========
void setup()
{
  Serial3.begin(115200);
  pinMode(13,OUTPUT);
  delay(500);
  Serial3.println("AT+CIPMUX=1");
  delay(2000);
  Serial3.println("AT+CIPSERVER=1,5000");
  delay(2000);
  Serial3.println("AT+CIPSTO=3600");
  delay(2000);
}

void loop()
{
  while(Serial3.available())
  {
    char Rdata;
    Rdata=Serial3.read();
    if(Rdata=='A'|Rdata=='a')
    {
      digitalWrite(13,HIGH);
      delay(50);
    }
    else if(Rdata=='B'|Rdata=='b')
    {
      digitalWrite(13,LOW);
      delay(10);
      digitalWrite(13,HIGH);
      delay(10);
      digitalWrite(13,LOW);
    }
    else
    {
      digitalWrite(13,LOW);
    }
  }
}
